Commercial Solar System Design: 6 Critical Key Steps

What are the key steps to ensure a quality Commercial Solar System Design & Installation?

Commercial Solar System Design: Site-specific Structural Engineering Certification

In the context of quality commercial solar system design, a structural engineering report and certification are crucial documents that assess the suitability and safety of the structure to support the added weight and loads of the solar panels.

A structural engineering report for commercial solar system design installed on a rooftop evaluates the structural integrity of the building to determine if it can safely accommodate the additional weight of the solar panels and associated equipment. The report considers factors such as the roof’s design, materials, and load-bearing capacity.

The report typically includes:

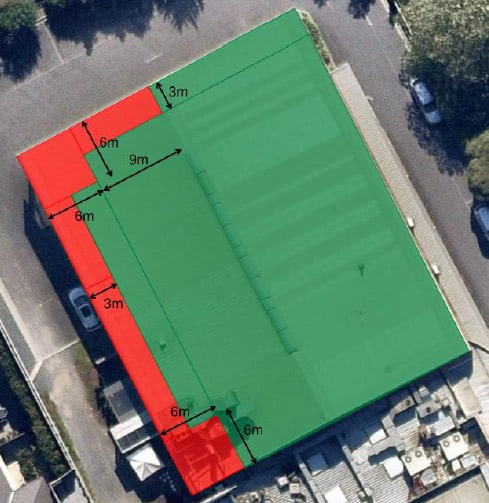

Figure 1 - Installation Zones (highlighted in green). Exclusion Zones (highlighted in red).

1. Roof Assessment:

The engineer inspects the rooftop to assess its condition, construction, and any existing structural deficiencies. They evaluate the roof’s load-bearing capacity and determine if it requires reinforcement to support the weight of the solar panels, a critical consideration in commercial solar system desgin.

2. Structural Analysis:

The engineer conducts calculations and simulations to analyse the impact of the commercial solar system design on the roof’s structural stability. This includes evaluating the distribution of loads, wind forces, and potential vibrations to ensure that the roof can withstand these additional stresses.

3. Reinforcement Recommendations:

If the roof’s existing structure is insufficient to support the solar panels, the report will outline recommendations for reinforcement measures. This may include modifications to the roof’s support structure or the installation of additional supports to ensure a compliant commercial solar system design.

A structural engineering certification is at the heart of a quality commercial solar system design and confirms that the rooftop has been assessed by a qualified engineer and deemed suitable for the safe installation of commercial solar systems. The certification assures stakeholders, such as building owners, solar installers, and regulatory authorities, that the rooftop structure has been evaluated and meets the necessary safety requirements to satisfy a compliant commercial solar system design.

Obtaining a structural engineering report and certification as part of commercial solar system design is essential to ensure the structural integrity of the building. It helps prevent potential risks such as roof collapse, structural damage, or safety hazards. Additionally, it provides peace of mind to building owners and solar installers, assuring them that all commercial solar systems will be safely and securely mounted on the rooftop.

Figure 2 - Installation Zones (highlighted in green). Exclusion Zones (highlighted in red).

Commercial Solar System Design
Solar Panel DC String Configuration

Optimal solar panel layout design and string configuration are of utmost importance in Commercial Solar System Design, maximizing the efficiency and performance in terms of;

1. Maximizing Solar Energy Production:

The solar panel layout design and string configuration determine how sunlight is captured and converted into electricity. By positioning solar panels to minimize shading and optimize sun exposure, energy production can be maximized. Efficient layout design ensures that each panel operates at its peak capacity, resulting in higher overall system efficiency and increased energy generation, a key step to ensure optimal commercial solar system design.

2. Minimizing Power Losses:

Shading, soiling, and other factors can lead to power losses in all commercial solar system design. Optimal layout design and string configuration minimise the impact of shading by arranging panels in a way that minimises shadowing between them. This helps to reduce power losses caused by partial shading and ensures consistent output across entire commercial solar systems.

3. Enhancing System Reliability:

Quality commercial solar system design panel layout and string configuration contribute to the long-term reliability of the system. Properly arranged solar panels reduce the risk of hotspots, where uneven shading or improper stringing can lead to localised overheating and potential damage. By ensuring uniform distribution of current flow, the layout design helps maintain balanced system performance and prevents premature solar panel degradation.

4. Simplifying Maintenance and Troubleshooting:

An optimised layout design and string configuration make maintenance and troubleshooting more efficient. Clear organisation and easy access to panels enable faster identification and resolution of issues. Additionally, well-arranged strings simplify monitoring and data collection, aiding in identifying underperforming panels and optimising commercial solar system design performance.

5. Compliance with Electrical and Safety Standards:

Proper string configuration ensures compliance with electrical codes and safety standards. The design accounts for appropriate voltage and current levels within commercial solar system design, minimising electrical hazards and fire risks. Adhering to these standards ensures the safety of personnel working on the system and the building’s occupants.

In summary, the optimal solar panel layout design and string configuration play a critical role in maximising energy production, minimising power losses, enhancing system reliability, simplifying maintenance, and ensuring compliance with electrical and safety standards. By investing in careful planning and design, solar system owners can optimise the performance, longevity, and return on investment of their commercial solar system design.

Commercial Solar System Design:
Electrical Engineering & Secondary Grid Protection

The importance of secondary network grid protection design when connecting commercial solar systems to the electricity grid in Australia cannot be overstated in terms of commercial solar system design.

1. Grid Stability and Power Quality:

When commercial solar systems are connected to the electricity grid, they become an integral part of the overall grid infrastructure. The secondary network grid protection design ensures that commercial solar systems operate safely and does not negatively impact the stability and power quality of the grid. It includes measures such as fault detection, isolation, and power regulation to prevent disruptions and maintain a consistent supply of electricity.

2. Safety of Personnel and Public:

The secondary network grid protection design prioritizes the safety of personnel working on commercial solar systems and the general public. It includes protective devices and mechanisms that detect and isolate faults to minimise the risk of electrical shock, fires, and other hazards. By ensuring safe operation and rapid response to faults, the design protects both the workers and the surrounding community. Proper commercial solar system design always prioritizes safety.

3. Compliance with Grid Connection Standards:

In Australia, grid connection standards and regulations are in place to ensure the smooth integration of renewable energy systems like solar panel installations. The secondary network grid protection design ensures compliance with these standards, ensuring that the commercial solar system design meets all requirements related to grid stability, fault protection, and power quality. Compliance is essential for obtaining the necessary approvals and permits for grid connection.

4. Grid Resilience and Adaptability:

Australia’s electricity grid experiences various challenges, including fluctuating demand, intermittent renewable energy generation, and potential grid disturbances. The secondary network grid protection design considers these factors and contributes to the resilience and adaptability of the grid. It enables smooth integration of commercial solar systems, allowing it to contribute to grid stability and support the overall energy supply.

5. Long-Term System Performance:

A well-designed secondary network grid protection system ensures the long-term performance and reliability of commercial solar systems. It prevents damage to the system caused by grid-related issues, voltage fluctuations, and other disturbances. By safeguarding the system’s integrity, the design helps maintain optimal performance, extend the system’s lifespan, and maximise the return on investment.

In summary, the secondary network grid protection as part of the overall commercial solar system design is crucial for safely connecting commercial solar systems to the electricity grid in Australia. It ensures grid stability, power quality, safety, compliance with standards, grid resilience, and long-term system performance. By prioritising these factors, the design enables the seamless integration of solar energy into the grid, fostering a sustainable and reliable energy future for Australia.

Commercial Solar System Design
Network Grid Connection

The process of applying to an electricity network operator for permission to connect commercial solar systems to their electricity grid involves several steps as they relate to compliant commercial solar system design.

1. Preparing the Application:

Lumenaus starts by gathering all the necessary information and documents required for the application. This may include the system specifications, design plans, electrical diagrams, and any relevant certifications or permits.

2. Application Submission:

Lumenaus submits the application to the electricity network operator. Most network operators have online application portals or designated application forms that need to be completed. Lumenaus ensures that all required information is accurately provided and any supporting documents are attached.

3. System Assessment:

The network operator will review the application and assess proposed commercial solar system design. This assessment includes evaluating the system’s technical specifications, compliance with grid connection standards, and its potential impact on grid stability and power quality.

4. Network Impact Study:

In some cases, the network operator may conduct a network impact study to determine the system’s impact on the grid. This study assesses the system’s integration, voltage levels, fault protection, and potential impact on grid infrastructure. It helps the operator understand the system’s compatibility with the existing grid infrastructure.

5. Agreement and Connection Offer:

If the application is approved, the network operator will issue a connection offer. This offer outlines the terms and conditions for grid connection, including any technical requirements, connection fees, and contractual obligations. Review the offer carefully and negotiate any necessary changes or clarifications.

6. Connection Agreement and Contract:

Once the connection offer is accepted, a connection agreement or contract will be established between the solar system owner and the network operator. This agreement formalises the terms of grid connection, sets out the responsibilities of both parties, and may include provisions for ongoing maintenance, metering, and reporting.

7. Commercial Solar Installation and Compliance:

Prior to grid connection, Lumenaus ensures that commercial solar systems are installed and commissioned in compliance with the agreed-upon specifications, safety standards, and relevant regulations. This includes obtaining necessary permits, conducting inspections, and adhering to any grid connection requirements specified by the network operator.

8. Grid Connection and Testing:

Once the system installation is complete and compliance is confirmed, coordinate with the network operator to schedule the grid connection. The operator will perform tests and inspections to verify the system’s performance, safety, and compliance with connection requirements.

9. Monitoring and Ongoing Obligations:

After the successful grid connection, comply with any ongoing monitoring, reporting, and maintenance obligations as outlined in the connection agreement. This may include regular reporting of energy generation, system performance monitoring, and responding to any network operator requests or notifications.

It’s important to note that the specific process may vary slightly depending on the electricity network operator and local regulations. Lumenaus will consult with the network operator’s guidelines with the assistance of qualified Electrical Engineers to ensure a smooth and successful grid connection for your commercial solar systems.

Execution of Commercial Solar System Design, Installation & quality Project Delivery

The importance of quality workmanship cannot be overstated when considering the installation of commercial solar systems. Quality workmanship ensures the system’s optimal performance, longevity, and safety. Here’s an explanation of why quality workmanship is crucial:

1. System Efficiency:

Properly installed commercial solar systems will maximise energy generation. Quality workmanship ensures that solar panels are correctly positioned and aligned to receive maximum sunlight, minimising shading and optimising energy production. Proper wiring and connections prevent energy losses, allowing the system to operate at its peak efficiency. Attention to detail during installation ensures that every component works together seamlessly, maximising the overall system efficiency.

2. System Longevity:

Commercial solar systems are a long-term investment, and quality workmanship plays a significant role in its durability and longevity. Proper installation techniques ensure that the system can withstand environmental factors such as wind, rain, and temperature fluctuations. Adequate mounting and secure fastening of components protect against potential damage or dislodging over time. Quality workmanship helps prevent premature wear and tear, reducing the need for repairs or replacements in the future.

3. Safety and Compliance:

Safety is of utmost importance with any commercial solar system design. Quality workmanship adheres to safety standards and regulations to protect both workers and building occupants. Properly installed electrical wiring and connections minimise the risk of electrical hazards, such as electrical shocks or fires. Compliance with local building codes and industry standards ensures the system meets the necessary safety requirements.

4. Warranty and Insurance:

Many solar panel manufacturers provide warranties for their products, but these warranties may become void if the system is not installed correctly. Quality workmanship ensures that the system installation meets the manufacturer’s requirements, allowing for full warranty coverage. Additionally, insurance providers may require proof of professional installation to provide coverage for the system. By employing experienced and qualified installers, you can secure warranty protection and insurance coverage for your commercial solar systems.

5. Performance Monitoring and Maintenance:

A properly installed system facilitates effective performance monitoring and maintenance. Quality workmanship ensures accurate wiring and connections, making it easier to monitor the system’s performance and identify any issues. Regular maintenance and cleaning become more straightforward when the system is installed with precision. Quality workmanship allows for easy access to components, simplifying inspections and upkeep.

6. Professional Reputation and Customer Satisfaction:

Hiring experienced and reputable installers for your commercial solar systems enhances your professional reputation. Quality workmanship demonstrates your commitment to sustainability and responsible business practices. A well-installed system is more likely to meet or exceed the customer’s expectations, leading to higher customer satisfaction and positive referrals.

In summary, quality workmanship is essential for the successful installation of all commercial solar systems. It ensures system efficiency, longevity, safety, compliance, warranty coverage, and ease of monitoring and maintenance. By prioritising quality workmanship, you can maximise the benefits of your commercial solar investment and enjoy a reliable and high-performing renewable energy solution.

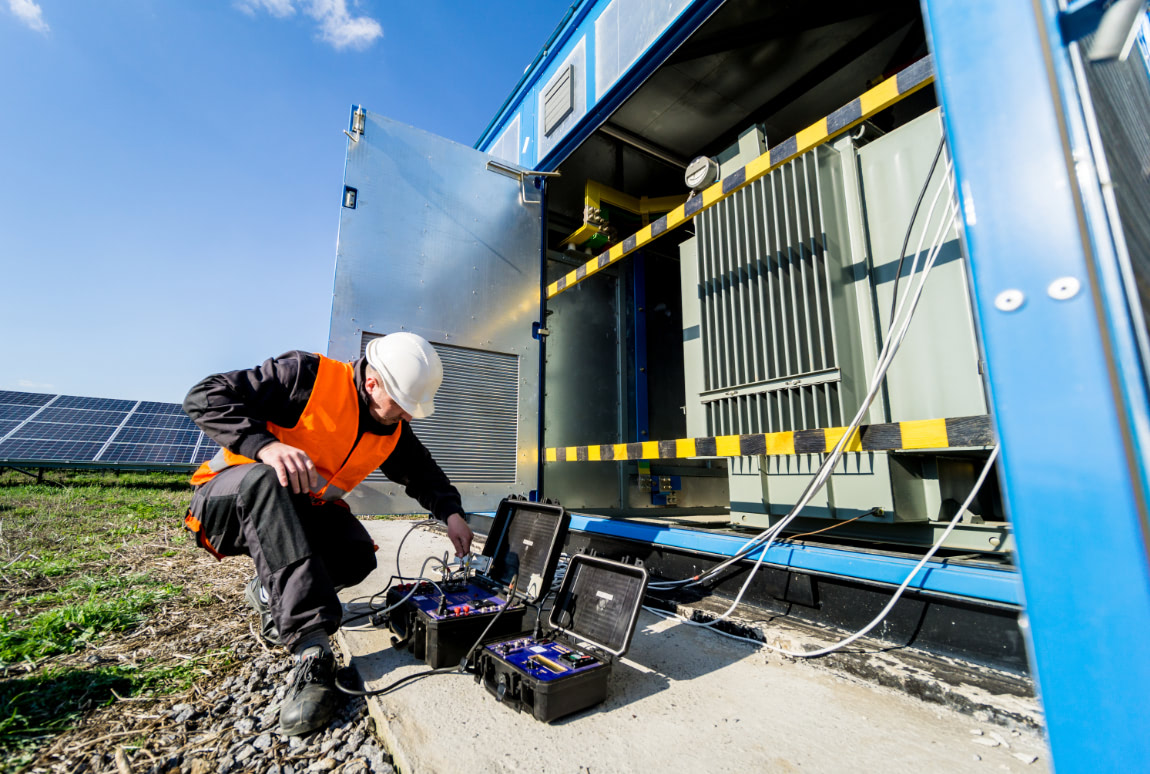

Commissioning & Testing of Commercial Solar Systems

The final commissioning and testing of commercial solar systems prior to switching it on is of utmost importance for several reasons:

1. Performance Validation:

Commissioning and testing allow for the verification of the system’s performance and functionality. It ensures that all components, including solar panels, inverters, wiring, and monitoring systems, are installed and functioning correctly. By conducting comprehensive tests, any potential issues or discrepancies can be identified and resolved before the system is put into operation.

2. Safety Assurance:

Commissioning and testing play a critical role in ensuring the safety of all commercial solar system design. By thoroughly checking the electrical connections, grounding, and protective devices, potential risks such as electrical shocks, fires, or other safety hazards can be mitigated. This step is crucial to protect personnel working on the system, as well as the building occupants and the surrounding environment.

3. Compliance with Regulations:

Commissioning and testing help ensure compliance with local regulations, industry standards, and grid connection requirements. It allows for the verification of the system’s conformity to safety codes, electrical standards, and any specific regulations set by the relevant authorities. By meeting these requirements, all commercial solar system design can obtain necessary certifications and permits for its operation.

4. Optimal Performance Optimisation:

The commissioning and testing process allows for fine-tuning and optimisation of the system’s performance. By analysing the system’s output, monitoring its efficiency, and adjusting settings if needed, any potential performance issues can be identified and rectified. This ensures that all commercial solar systems operates at its highest level of efficiency, maximising energy generation and optimising the return on investment.

5. Troubleshooting and Maintenance Readiness:

Through commissioning and testing, any issues or malfunctions can be detected and addressed promptly. It provides an opportunity to identify and rectify any problems, such as faulty components, wiring issues, or configuration errors. Additionally, this process helps ensure that the system is ready for ongoing maintenance. By thoroughly examining the system prior to operation, it becomes easier to establish a maintenance schedule and plan for future inspections and repairs.

In summary, the final commissioning and testing of all commercial solar systems are crucial steps to validate its performance, ensure safety, comply with regulations, optimise efficiency, and identify and resolve any potential issues. By conducting these tests, the system can be confidently switched on, knowing that it has undergone thorough scrutiny and is ready to operate safely and efficiently.
